How do I connect my ConnectedRide Com P1 to the ConnectedRide Navigator, my smartphone or the TFT display?

Follow these steps to prepare your ConnectedRide Com P1 for a Bluetooth connection:

  1. Switch on the Com P1 device by pressing and holding the menu button for 1 second.

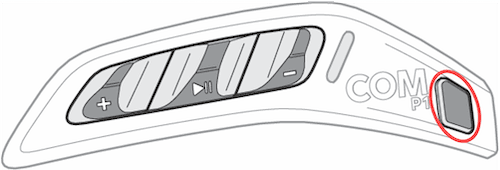

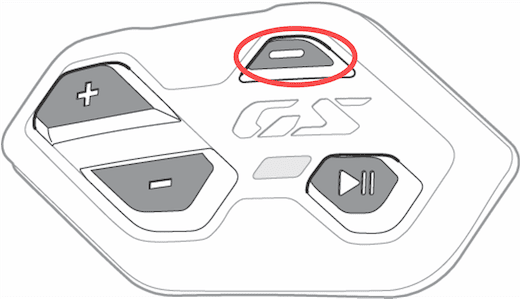

    On the ConnectedRide Com P1 GS, press the menu button On the ConnectedRide Com P1 System 8, press the menu button

  2. Press the menu button and the (+) button at the same time.

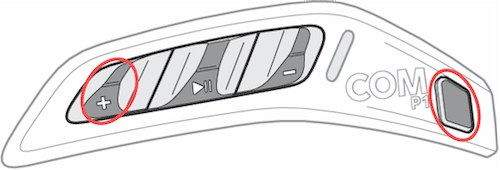

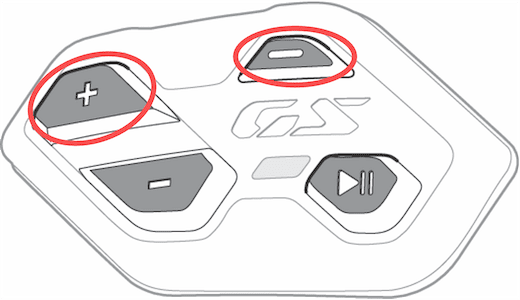

    On the ConnectedRide Com P1 GS, press the menu and plus buttons at the same time On the ConnectedRide Com P1 System 8, press the menu and plus buttons at the same time

  3. Press the (+) button repeatedly until you hear a voice prompt naming the device you wish to pair with.

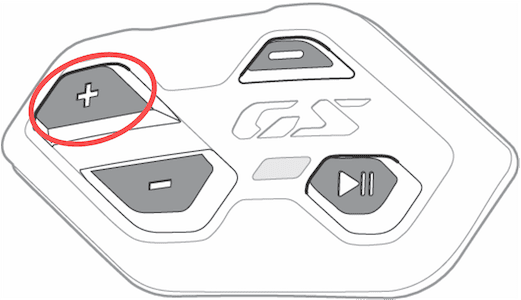

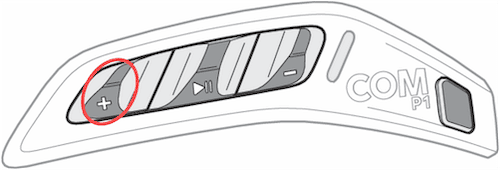

    On the ConnectedRide Com P1 GS, press the plus button On the ConnectedRide Com P1 System 8, press the plus button

  4. Press the play button to confirm your selection.

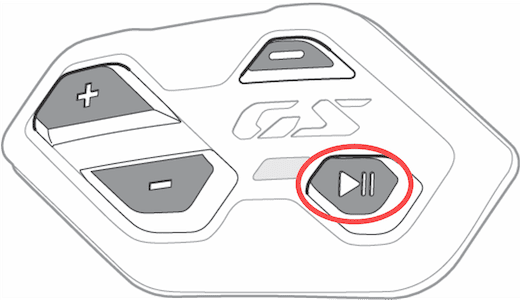

    On the ConnectedRide Com P1 GS, press the play button On the ConnectedRide Com P1 System 8, press the play button

  5. The Com P1 is now in pairing mode and the LED on the Com P1 flashes rapidly in blue and red.









Please note: Bluetooth pairing is only possible when the vehicle is stationary!

Read here to find out which devices you should connect to one another.



In this article, you can find out more about the possible connections for your ConnectedRide Com P1.
