How do I connect my 10.25" TFT display to my smartphone, helmet and passenger helmet?

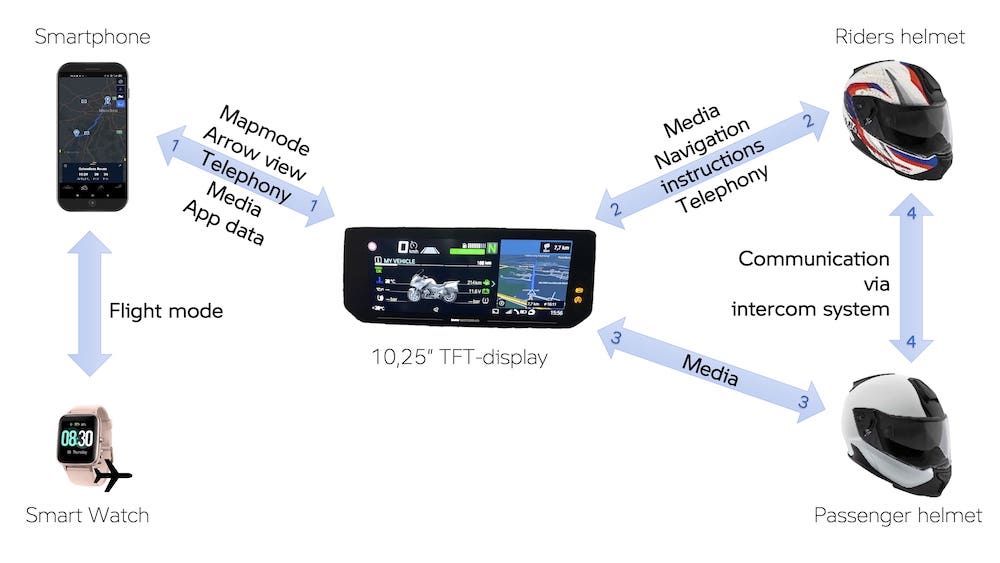

Follow these steps to connect your 10.25" TFT display to your smartphone, helmet and passenger helmet:

1. First, connect the smartphone to the TFT display
2. Then connect the driver's helmet to the TFT display
3. Finally, connect the passenger helmet to the TFT display.
4. For communication between the rider and the passenger, the two helmets can also be connected to each other.

In this video, you can see how to connect your smartphone to your TFT display:
YouTube Video
To see the video here embedded, it is prerequisite to activate marketing cookies.

Via the Bluetooth connection of your smartphone, the arrow navigation, telephone, media and app data can be viewed and controlled. With the additional Wi-Fi connection, the Map mode is possible on the 10.25" TFT display. The rider hears the navigation announcements through the smartphone connection, can make phone calls and listen to music. The passenger, on the other hand, can only listen to music.



Note: If a Smart Watch is connected to the smartphone, it should be set to flight mode so as not to interfere with the connection of the Map mode.

Please note that other devices in the vicinity should not have Bluetooth and Wi-Fi enabled in order not to interfere with the connection between the devices. If the connections still fail, delete all pairings and reconnect the devices.
