How do I connect my 6.5" TFT display to my smartphone in the cradle, my helmet and the passenger helmet?

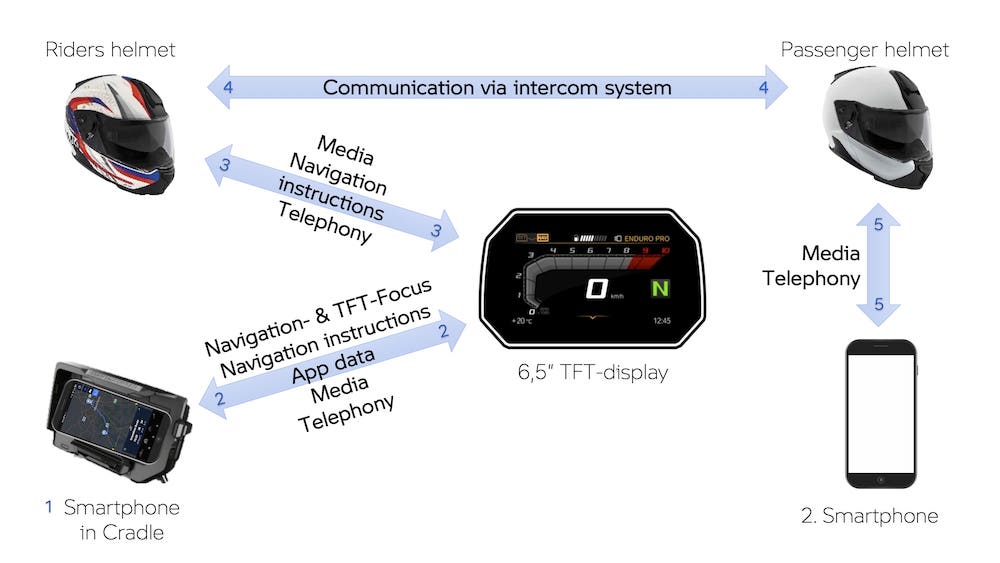

Follow these steps to connect your 6.5" TFT display to your smartphone in the cradle, your helmet and the passenger helmet:

1. Attach the ConnectedRide Cradle to the Mount Cradle.
2. Connect the smartphone to the cradle and the TFT display. Here you can learn how to connect your smartphone to the ConnectedRide Cradle.
3. Then connect the driver's helmet to the TFT display. Through this connection, the driver hears the navigation announcements.
4. For communication between the rider and the passenger, the two helmets can be connected to each other.
5. In addition, the passenger can connect their smartphone to the helmet to make phone calls or listen to music.

To be able to operate the cradle with the Multi-Controller, make sure that you have chosen the right interface focus. You can recognise this by the fact that in the upper left corner of the TFT display "NAV" is highlighted in colour . If "TFT" is highlighted in colour here , you can change the interface focus to the "NAV" cradle by pressing and holding the MENU rocker switch.
For more information, read here.

Please note that other devices in the vicinity should not have Bluetooth enabled in order not to interfere with the connection between the devices. If the connections still fail, delete all pairings and reconnect the devices.
